Graphite powder production line equipment specifications and models of HCM Guilin Hongcheng graphite vertical mill
Graphite powder production line equipment-HCM Guilin Hongcheng Large Vertical Mill: Capable of dry grinding graphite to produce coarse powder (80-400 mesh) and superfine powder (325-3000 mesh). This vertical mill features high grinding efficiency and low energy consumption, achieving 40-50% energy savings compared to ball mills. With its large single-unit production capacity, it significantly enhances production efficiency and reduces overall costs for graphite powder manufacturing. Below are production case studies and specifications of HCM Guilin Hongcheng Graphite Vertical Mill:

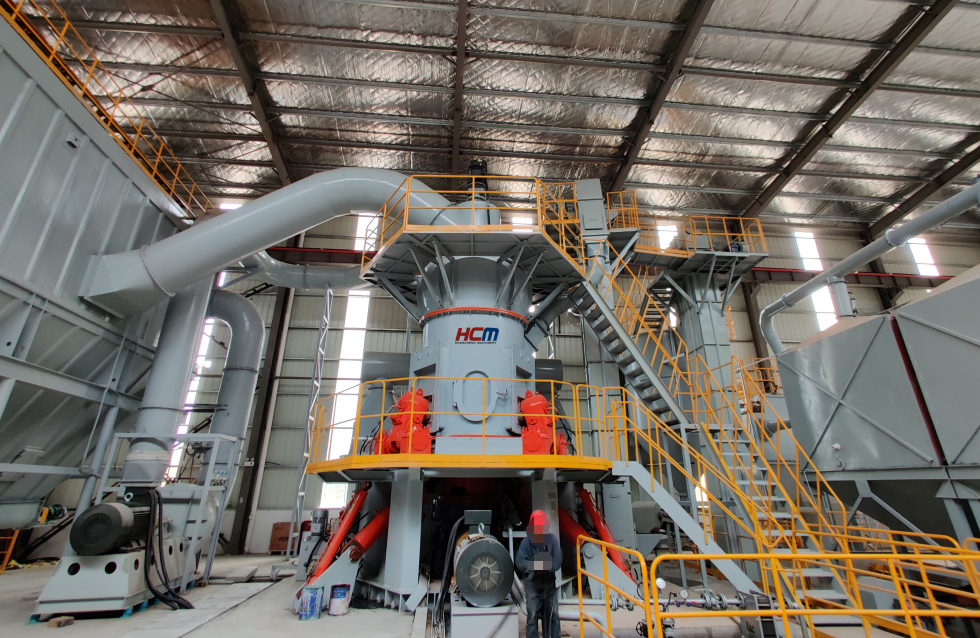

1. Case Study of Graphite Ultrafine Powder Production Line: The grinding material is graphite, using the HCM Guilin Hongcheng HLMX1100 ultrafine vertical mill. The mill processes graphite into ultrafine powder with particle size around 17 microns, achieving an hourly output of approximately 1.8 tons. The HCM Guilin Hongcheng HLMX1100 ultrafine vertical mill features a motor power of 250 kW, with feed material particle size<10 mm. It can dry grind graphite and other non-metallic minerals with Mohs hardness below 7, producing fine powder with particle size 5-22 μm (with a secondary classification system for 3-5 μm). The hourly output of the HLMX ultrafine vertical mill ranges from 4 to 14 tons.
2. Case Study of Graphite Powder Production Line: This facility manufactures 200-mesh graphite powder using the HCM Guilin Hongcheng HLM1300 vertical grinding mill. The mill processes a blend of graphite, calcined coke, and petroleum coke, achieving a 200-mesh pass rate with D75 specifications and a production capacity of approximately 10 tons per hour. The HCM Guilin Hongcheng HLM1300 vertical mill operates with a motor power of 185-200 kW, processing raw materials with moisture content ≤5% at a production rate of 14-15.5 tons per hour. The mill's grinding rolls feature a hydraulic lifting mechanism for easy maintenance, while their roller sleeves allow reversible operation to extend wear-resistant materials' service life. Special-grade materials are employed for both grinding rolls and liners, ensuring long-term durability.
HCM Guilin Hongcheng Vertical Mill is available in two models: HLM Series Coarse Mill and HLMX Ultrafine Mill. The mill specifications include HLM/HLMX1100, HLM/HLMX1300, HLM/HLMX1500, HLM/HLMX1700, HLM/HLMX2000, HLM/HLMX2400, HLM/HLMX2600, HLM/HLMX2800, etc. HCM Guilin Hongcheng can customize production lines matching capacity requirements for mineral powder manufacturing. The mill is suitable for dry grinding of non-metallic ores, slag, and solid waste with hardness below 7. Featuring high grinding efficiency, low energy consumption, PLC automatic control system, and remote operation capability, it ensures easy maintenance and reduced labor costs. For inquiries about HCM Guilin Hongcheng's complete equipment pricing or mill configuration plans for mineral powder production lines, please contact Engineer Yao. Contact information: e-mail:[email protected], WeChat: 18878317068
