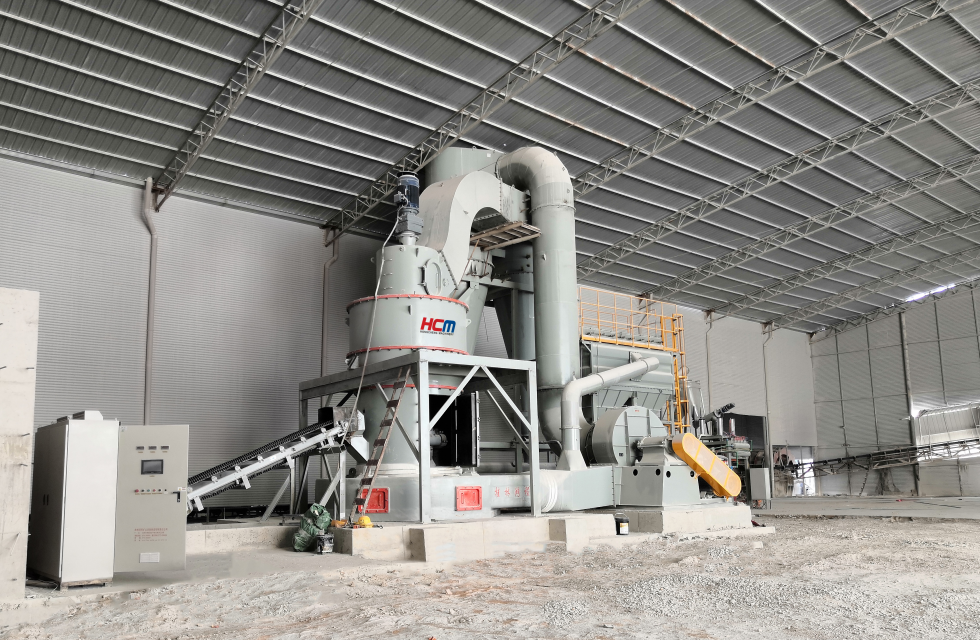

The HCM grinding mill is designed to grind limestone to 45-micron mineral powder using the HCM Raymond Mill HC2000. Featuring 4 grinding rolls and a 2000mm diameter grinding ring, this equipment can process limestone with particle sizes ≤40mm, producing fine powder with a fineness of 38-180 microns at a capacity of 10-35t/h. The HC2000 model achieves a production rate of approximately 19t/h for limestone grinding to 45 microns, meeting operational requirements. With stable performance, minimal vibration, low noise, dust-free operation, and energy efficiency, this grinding mill delivers high output and low energy consumption, making it the ideal choice for limestone processing.
The HC Series Oscillating Mill, developed by HCM Guilin Hongcheng, is an innovative high-efficiency grinding system based on traditional Raymond mills. Featuring a unique longitudinal oscillation design, it delivers 40% higher output and 30% lower energy consumption compared to R-type mills. The patented feeding mechanism ensures uniform material distribution, enhancing crushing efficiency per unit weight and boosting production. For pricing and technical specifications, contact: e-mail:[email protected], WeChat: 18878317068
