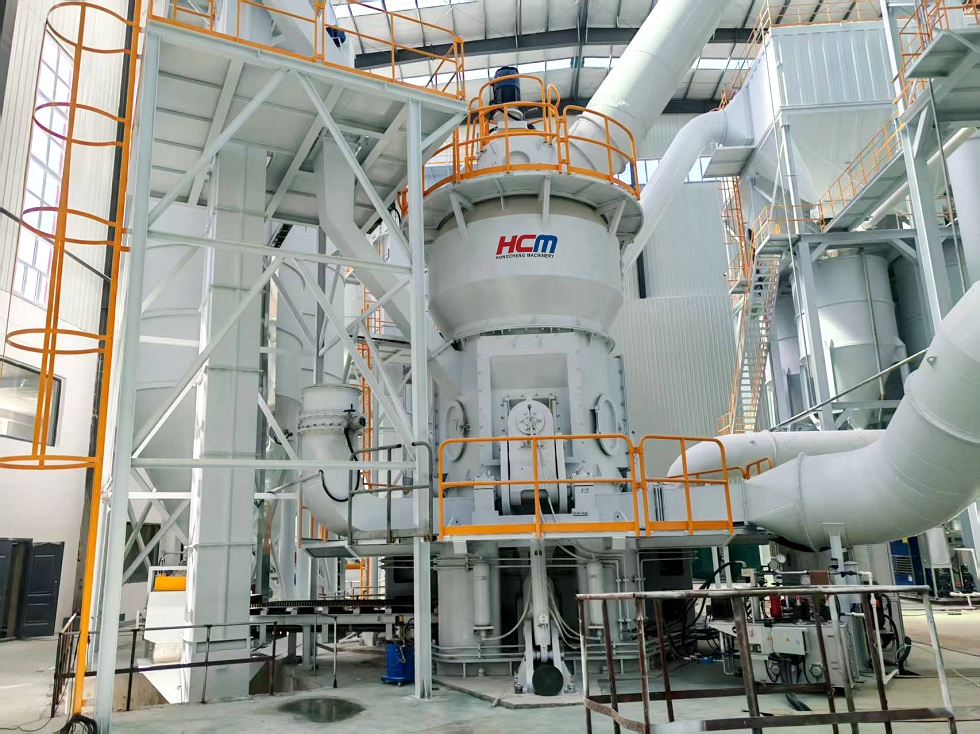

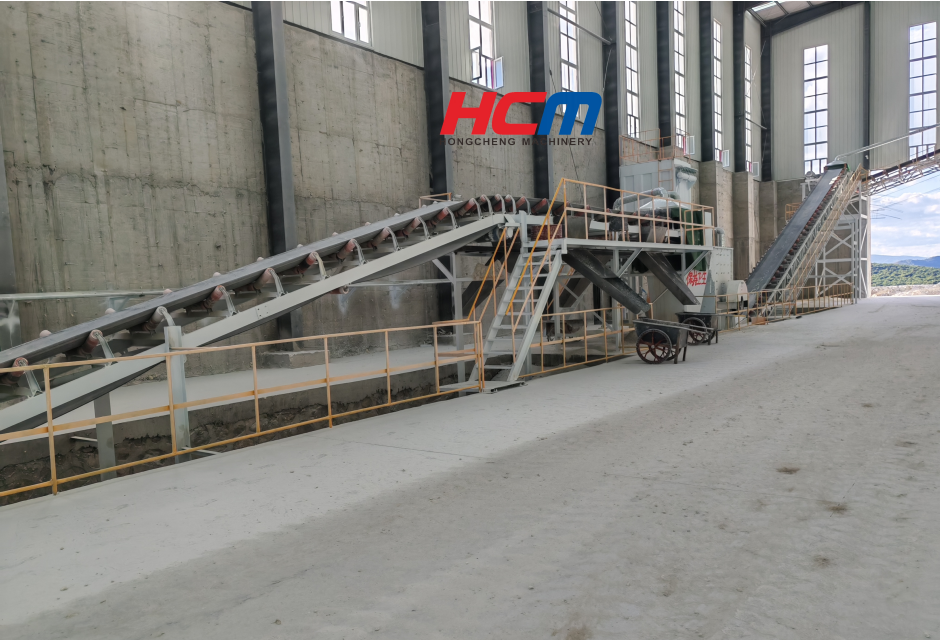

Recently, the limestone grinding project of HCM grinding mill, a manufacturer of China grinding mills, has been successfully put into operation. The material of this project is limestone, which is ground to a size between 80μm and 45μm using the HCM vertical mill, with a production capacity of 25t/h to 40t/h, meeting the customer's production capacity requirements.

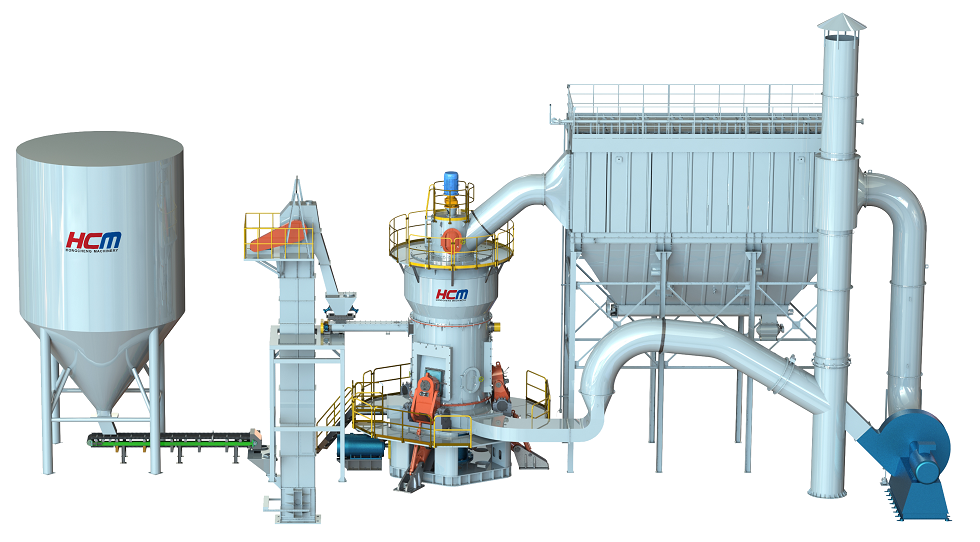

The HLM series vertical mill, developed and manufactured by HCM Grinding Mill, is an energy-efficient advanced grinding equipment integrating drying, grinding, classification, and conveying. The working principle of the HLM vertical mill is as follows: The motor drives the reducer to rotate the grinding disc. Material is fed into the rotating disc's center through a lock-air feeding device. Under centrifugal force, the material enters the grinding channel. The rotating grinding rods continuously apply pressure, subjecting the material to compression, grinding, and shearing effects, thereby achieving thorough pulverization.
Meanwhile, hot air is uniformly and rapidly ejected upward through the wind ring surrounding the grinding table. The ground material is lifted and dried by the airflow, then carried into the classifier. Qualified fine powder passes smoothly and is collected by the dust collection system as the final product, while unqualified coarse powder is re-impounded on the grinding table by the classifier blades. This coarse powder is then re-ground with fresh material, completing the entire grinding cycle.
The HLM series vertical mills manufactured by HCM Grinding Mill can dry-process non-metallic ores, slag, and solid waste with Mohs hardness below 7 into mineral powder with a particle size of 22-180μm, with a production capacity of 5-700t/h. For inquiries about mill prices, technical specifications, or industry success stories, please contact us：e-mail:[email protected], WeChat: 18878317068
